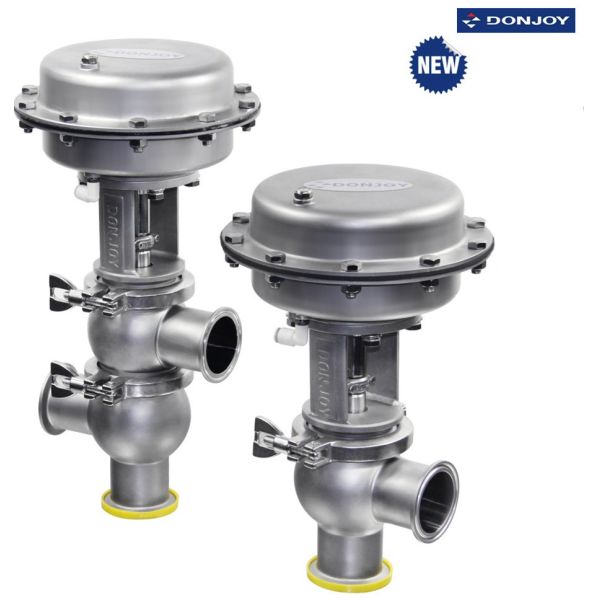

Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316 DN150

Name: Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316 DN150
Brand: DONJOY
Price: 1 USD

Brand Name : DONJOY

Certification : CE,3A,FDA

Place of Origin : CHINA

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, LC, Credit Card

Supply Ability : 1000 Piece/Pieces per Month

Delivery Time : according to order

Packaging Details : carton box

Material : SS304 / 316

Media : water etc.

Operate Mode : Pneumatic

Size : DN25 - DN150

Pressure : Medium Pressure

Valve seat : Single seat

Product name : Reversing valve

Ra : Could reach ≤0.5μm

Contact Now

Food Grade SS316 Sanitary Mainifold Mixproof Valve

Quick detail
Aseptic Reversing Seat Valve
Aseptic Regulating Seat Valve
Aseptic Divert Seat Valve

Specification

Product Name:	sanitary aseptic reversing valve with pneumatic actuator for conveying fluid
Valve Body Material:	Stainless steel
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10 bar
Max.Working Temperature:	130°C
Available size:	DN25 - DN150 or 1" - 6"
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Pneumatic operation
Structure	Aseptic type
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy, food, beverage, pharmacy, cosmetic etc
Body seat	single seat
Body type	20type,30type,11type,12type,21type,22type,31type,32type
Feature of seal:	Elastic compression, friction - free

Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor

Product drawings

Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316 DN150
